HH Tessen 5" Mid/High Line Array Speaker

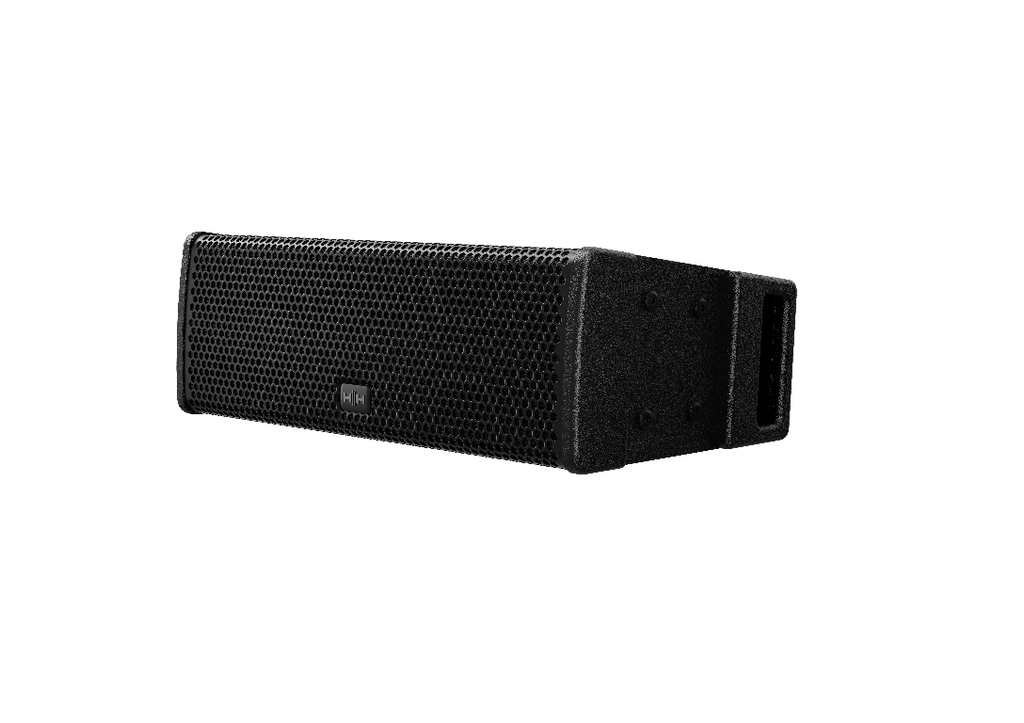

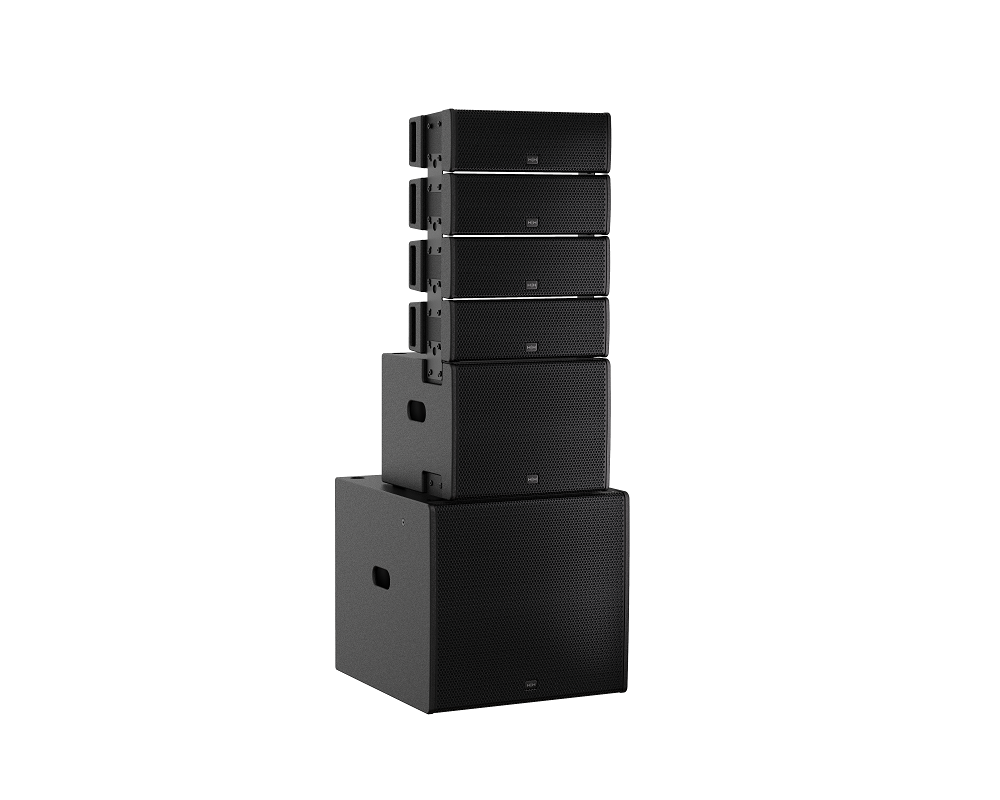

The TNA-2051 passive line array mid/high enclosure features dual 5-inch HH designed drivers alongside a 1.33-inch custom designed Celestion compression driver, mounted to a custom designed Celestion waveguide and horn. Equipped with integrated rigging hardware, the TNA-2051 can be installed efficiently. The TNA-2051 delivers a max SPL of 124dB with a wide frequency range of 65Hz > 20kHz. When combined with the TNA-2051, the TNA system provides a high specification flown installation system or ground stacked point source solution. The perfect live sound system.

SPECIFICATIONS

• Frequency Response (-10): 65Hz - 20kHz
• Frequency Response (-3): 100Hz - 18KHz
• Power: 200W AES, 800W Peak
• Sensitivity (1W/1M): 94dB
• Max SPL (1M) (Peak): 123dB
• Nominal System Impedance: 16 Ohms

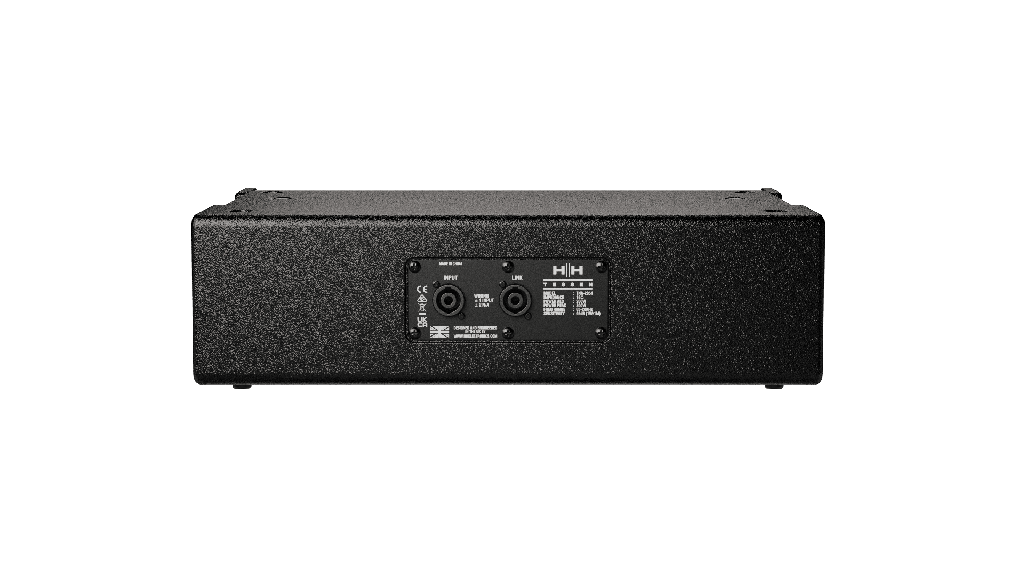

• Input Connector: NL4 ±1 Twist Lock Connector
• Link Connector: NL4 ±1 Twist Lock Connector

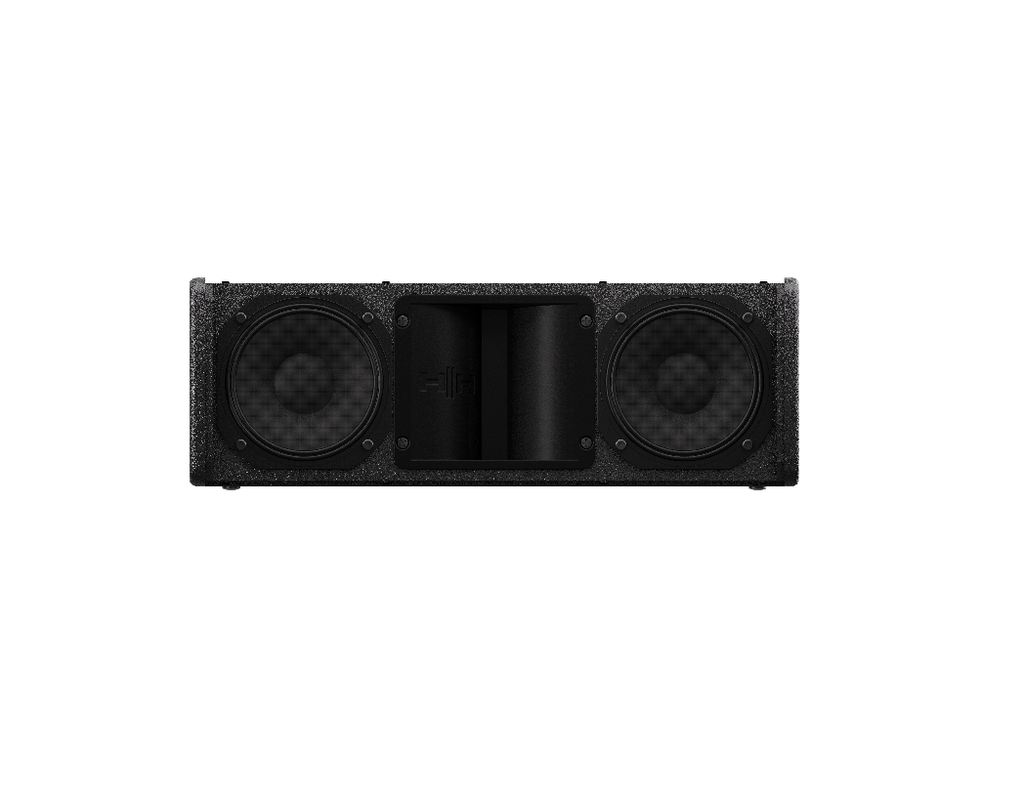

• HF Driver: 1 x 1.33 Inch Celestion Compression Driver, mounted to Celestion Designed wave guide and horn
• LF Driver: 2 x 5 Inch HH designed driver
• Crossover Frequency: 2000HZ
• Nominal Dispersion: 120° x 60° (120° x 30° single point)
• Splay Angle Settings: Dual Angle, 0° and 8°
• Recommended HPF Frequency: 100Hz
• Cabinet: 15mm Plywood
• Finish: Painted Black (White finish optional, subject to MOQ)
• Mounting Bracket: TNA-BRK1 for suspended mounting
• Mounting Points: M8 fixings for optional TNA-BRK1 flying bracket assembly (available separately)
• Grille: 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
• Unit Dimensions (HWD): 158 x 460 x 265mm / 6.2" x 18.1" x 10.4"
• Unit Weight: 8.4 Kg, 18.5 lbs (each)
• Carton Dimensions (HWD): 410 x 330 x 530mm, 16.1" x 13" x 20.9"
