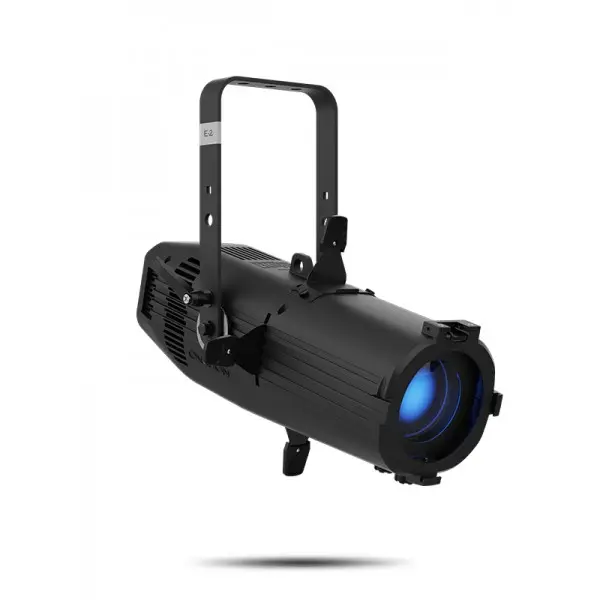

CHAUVET Ovation E-2FC

Ovation E-2 FC is a compact LED ellipsoidal spotlight that delivers a high quality of light and convenient features in a quiet durable design optimized for smaller venues. Its advanced full spectrum Ovation RGBA-Lime color mixing system produces exceptionally high CRI output that can be smoothly sized with an integrated manual Zoom and focusing made easier with a dedicated Focus Mode button.

FEATURES

• Full-spectrum LED ERS-style lighting fixture for small theaters and studios
• Integrated 25-50deg Zoom lens
• Color temperature presets from 2800 K to 8000 K with high CRI and CQS
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• Dedicated focus mode button for one-touch activation for focusing without a board-op.
• USB port for fixture software updates

SPECIFICATIONS

OPTICAL

• Light Source: 72 LEDs (15 reds 11 green, 6 blue, 4 cyan, 14 amber, 22 lime) 6 to 9.75 W, (1.5 A) 50,000 hours life expectancy
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 4525 K
• CRI (3200 K): 93
• Beam Angle Spot: 23.8°
• Beam Angle Flood: 46.4°
• Beam Angle 50% Zoom: 38.7°
• Field Angle Spot: 25.6°
• Field Angle Flood: 51°
• Field Angle 50% Zoom: 41.3°
• Cutoff Angle Spot: 24.9°
• Cutoff Angle Flood: 51.8°
• Cutoff Angle 50% Zoom: 41.9°
• Zoom Range: 23.8° to 51.8°
• Lumens (Spot) : 3708 lm
• Lumens (Flood) : 5608 lm
• Lumens (50% Zoom) : 5147 lm
• Illuminance (Spot) : 1107 lux @ 5 m
• Illuminance (Flood) : 488 lux @ 5 m
• Illuminance (50% Zoom) : 595 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Framing Shutters: Yes
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Focus: Manual
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 18.1 x 12.2 x 17.5 in (461 x 310 x 445 mm)
• Weight: 14.8 lb (6.7 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
• Gobo Size (Optional): “M”: 66 mm (outside), 48 mm (image), 2 mm (max. thickness)

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65
• Power Input: Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Data Connectors: 5-pin XLR
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
• Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
• Power and Current: 208 W, 1.71 A @ 120 V, 60 Hz
• Power and Current: 219 W, 1.10 A @ 208 V, 60 Hz
• Power and Current: 220 W, 0.98 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Ovation E-2FC
• Seetronic Powerkon power cord
• Ovation Metal Gobo Holder (“M” Size)
• Soft Focus Filter
• Quick Reference Guide or User Manual

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Seetronic Powerkon power linking cables
• 5-pin DMX Cables
