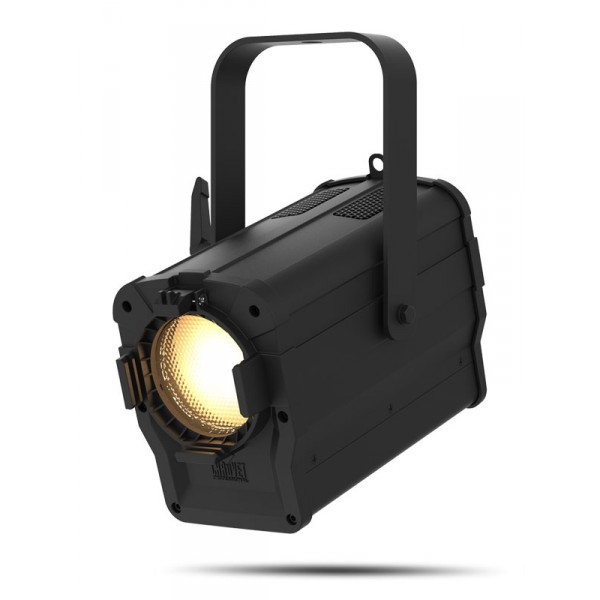

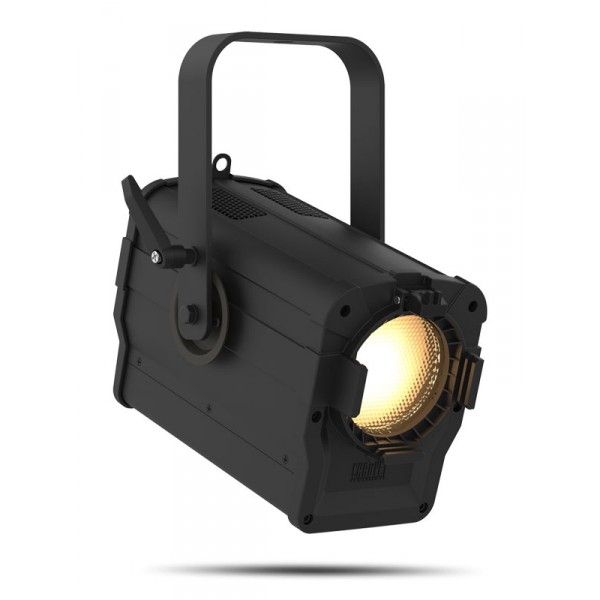

CHAUVET Ovation F-55WW

Ovation F-55WW is an efficient warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television studios and theatres. It projects a bright, beautifully soft field of light within a 30°- 69° field angle controlled by a manual zoom.

FEATURES

• Compact warm white Fresnel for tight spaces and on-location lighting
• 16-bit dimming resolution for smooth fades
• Flat, even field of light
• Virtually silent operation for use in any situation
• Manually controlled variable zoom angle between 30° to 69°

SPECIFICATIONS

OPTICAL

• Light Source: 1 LED (WW) 36 W, (740 mA), 3200 K, 50,000 hours life expectancy
• Color Temperature (at full): 3200 K
• CRI: 91
• Beam Angle: 18° to 56°
• Field Angle: 30° to 69°
• Zoom Angle: 30° to 69°
• Lumens (30°): 1,920
• Lumens (69°):  795
• Illuminance (30°) : 279 lux @ 5 m
• Illuminance (69°): 100 lux @ 5 m

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: No
• Color Temperature Presets: No
• Dim Modes: 4
• Built-in Automated Programs: No
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz

CONSTRUCTION / PHYSICAL

• Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
• Weight: 4.8 lb (2.2 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 3.25 in (83 mm)

CONNECTIONS

• Power Connection: Edison plug to hard-wired
• Power Input: Hard-wired
• Data Connectors: 5-pin XLR
• Cable Length (signal): 1.79 ft (0.54 m)
• Cable Length (power): 3.5 ft (1.07 m)

CONTROL

• Control Protocol: DMX
• DMX Channels: 1, 2 or 5
• Modes/Personalities: 3personalities (1CH, 2CH, 5CH)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 34 W, 0.267 A @ 120 V, 60 Hz
• Power and Current: 38 W, 0.150 A @ 208 V, 60 Hz
• Power and Current: 45 W, 0.163 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• Ovation F-55WW
• Gel Frame

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F3.25” Barndoor
