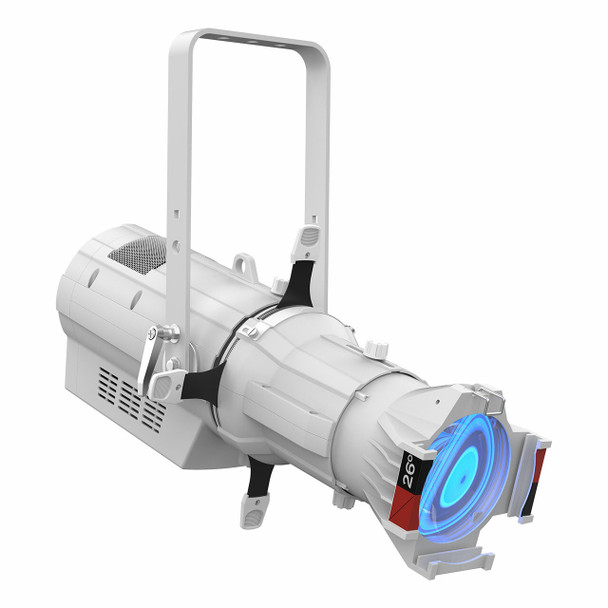

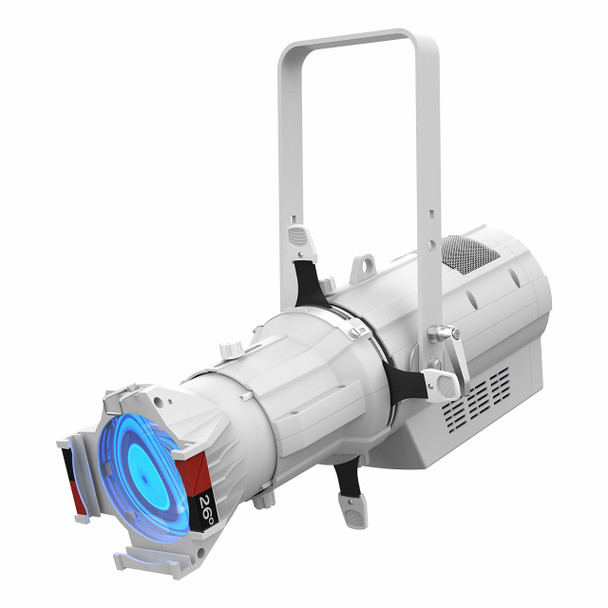

CHAUVET Ovation E-910FCWHT (no lens)

Ovation E-910FC is fully featured color mixing ERS-style fixture. It features full RGBA-Lime color mixing with output rivaling an incandescent fixture. Sacrifice nothing when it comes to control options with modes providing full 16-bit dimming (per color and master), selectable PWM, RDM and on-board dimming curve selection. Also accessible is our Virtual Color Wheel which matches popular gel colors when projected by a tungsten source, in addition we have added color temperature presets from 2800 to 6500 K that match a tungsten source to perfection.

FEATURES

• Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
• Ultra smooth 16-bit dimming of master dimmer and individual colors
• Flat, even field of light with superior color mixing
• Virtual Color wheel with color matched to popular Rosco Gel colors
• Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

SPECIFICATIONS

OPTICAL

• Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (1.4A), 5850 K, 50,000 hours life expectancy
• Color Temperature (at full): 5850K
• Beam Angle (w/19° lens): 19°
• Beam Angle (w/26° lens): 24°
• Beam Angle (w/36° lens): 28°
• Beam Angle (w/50° lens): 41°
• Beam Angle (w/15°–30° lens)(Narrow): 13°
• Beam Angle (w/15°–30° lens)(Wide): 24°
• Beam Angle (w/25°–50° lens)(Narrow): 23°
• Beam Angle (w/25°–50° lens)(Wide): 36°
• Field Angle (w/19° lens):19°
• Field Angle (w/26° lens): 26°
• Field Angle (w/36° lens): 34°
• Field Angle (w/50° lens): 51°
• Field Angle (w/15°–30° lens)(Narrow): 15°
• Field Angle (w/15°–30° lens)(Wide): 29°
• Field Angle (w/25°–50° lens)(Narrow): 26°
• Field Angle (w/25°–50° lens)(Wide): 50°
• Dimming Modes: 9
• Lumens (w/19° lens): 3,236
• Lumens (w/26° lens): 4,316
• Lumens (w/36° lens): 3,918
• Lumens (w/50° lens): 3,813
• Illuminance (w/19° lens): 3,017 lux @ 5 m
• Illuminance (w/26° lens): 1,894 lux @ 5 m
• Illuminance (w/36° lens): 1,137 lux @ 5 m
• Illuminance (w/50° lens): 513 lux @ 5 m
• Illuminance (w/15°–30° lens)(Narrow): 3,784 lux @ 5 m
• Illuminance (w/15°–30° lens)(Wide): 1,223 lux @ 5 m
• Illuminance (w/25°–50° lens)(Narrow): 1,657 lux @ 5 m
• Illuminance (w/25°–50° lens)(Wide): 647 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Manual
• Strobe Rate: 0 to 28 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
• Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
• Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
• Weight (fixture only): 15.4 lb (7.1 kg)
• Weight (w/26° lens): 19.8 lb (9 kg)
• Weight (w/15°–30° lens): 29.4 lb (13.3 kg)
• Weight (w/25°–50° lens): 27 lb (12.2 kg)
• Exterior Color: Black
• Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
• Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX
• DMX Channels: 5, 7, 10, 12, 13 or 15
• Modes/Personalities: 4 personalities (5, 7, 10, 12, 13, 15)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 11units @ 208 V; 12 units @ 230 V
• Power and Current: 240 W, 2.006 A @ 120 V, 60 Hz
• Power and Current: 234 W, 1.160 A @ 208 V, 60 Hz
• Power and Current: 234 W, 1.074 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, METIP
• Rating: IP20, dry location

WHAT'S INCLUDED

• OVATION E-910FC
• Neutrik powerCON power cord

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550

REQUIRED ACCESSORIES

• Lens Tube: 19°, 26°, 36°, 50°
