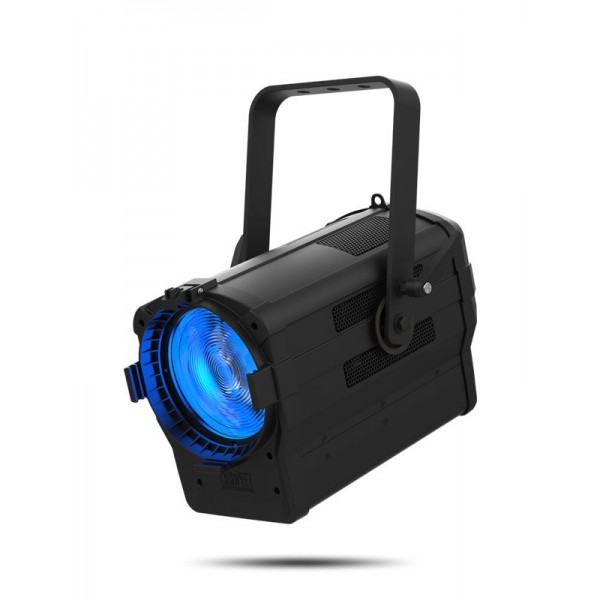

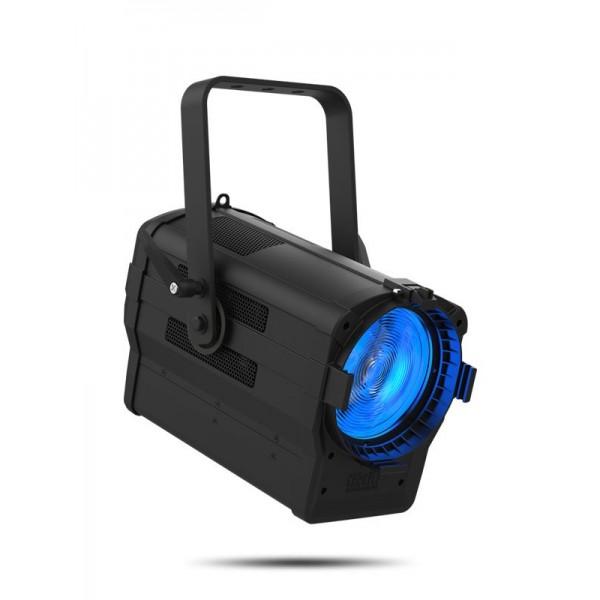

CHAUVET Ovation F-415FC

Ovation F-415FC is a 6” Fresnel style fixture that features our advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 27° – 68° field angle allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials. It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.

FEATURES

• Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
• Soft and even field of light
• Smooth, motorized zoom from 27° to 68°
• Beautiful 16-bit dimming of master dimmer and individual colors
• Easy to use on board control of color, zoom and dimming
• Virtual Color wheel with color matched to popular gel colors
• Color Temperature Presets from 2800 K to 6500 K
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications

SPECIFICATIONS

OPTICAL

• Light Source: 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 6500 K
• CRI (3200 K): 91
• Beam Angle: 14° to 43°
• Field Angle: 27° to 68°
• Zoom Angle: 27° to 68°
• Lumens (27°): 1,877, (68°): 2,815
• Illuminance (27°): 915 lux @ 5 m, (68°): 190 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 27 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

 PHYSICAL

• Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
• Weight: 12 lb (5.6 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

 CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 3, 5, 7, 11, 13, 14 or 17
• Modes/Personalities: 8 personalities (3, 5, 7, 11, 13, 14, 17, HSV)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V
• Power and Current: 124 W, 1.027 A @ 120 V, 60 Hz
• Power and Current: 124 W, 0.608 A @ 208 V, 60 Hz
• Power and Current: 126 W, 0.546 A @ 230 V, 50 Hz

CERTIFICATIONS

• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Ovation F-415FC
• Neutrik® powerCON® power cord
• Gel frame (6.25 in / 158.75 mm accessories)

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F6.25” Barndoor
