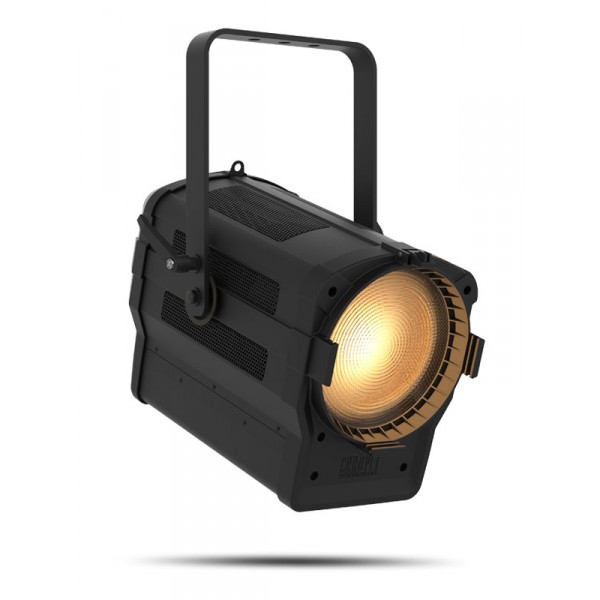

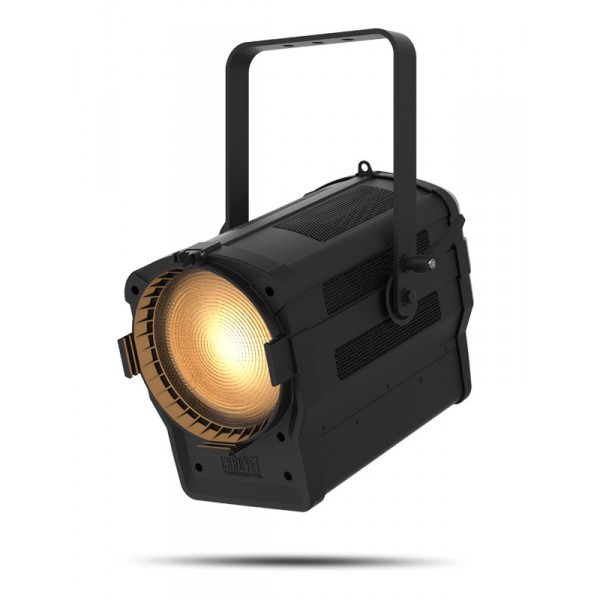

CHAUVET Ovation F-265WW

Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theaters and television studios. A motorized zoom with a 27°- 68° field angle and the light output can be controlled via DMX, on-board dials, RDM, adjustable PWM and an easy to navigate OLED full text display.

FEATURES

• Warm white fresnel with output comparable to an 8”, 2,000 W Fresnel
• 16-bit dimming resolution for smooth fades
• Flat, even field of light
• Virtually silent operation for use in any situation
• Motorized zoom angle between 27° to 68°, manually or via DMX

SPECIFICATIONS

OPTICAL

• Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy
• Color Temperature (at full): 3142 K
• CRI: 96
• Beam Angle: 16° to 46°
• Field Angle: 27° to 68°
• Zoom Angle: 27° to 68°
• Lumens (27°): 9,283
• Lumens (59°): 12,802
• Illuminance (27°): 4,010 lux @ 5 m
• Illuminance (59°): 1,162 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 30 Hz
• Dim Modes: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)
• Weight: 17.2 lb (7.9 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Protocol(s): DMX, RDM
• DMX Channels: 1, 2, 2 or 5
• Modes/Personalities: 4 personalities (1, 2, 2, 5)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
• Power and Current: 227 W, 1.88 A @ 120 V, 60 Hz
• Power and Current: 234 W, 1.11 A @ 208 V, 60 Hz
• Power and Current: 235 W, 1.01 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Ovation F-265WW
• Neutrik powerCON power cord
• Gel Frame

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation F7.5” Barndoor
