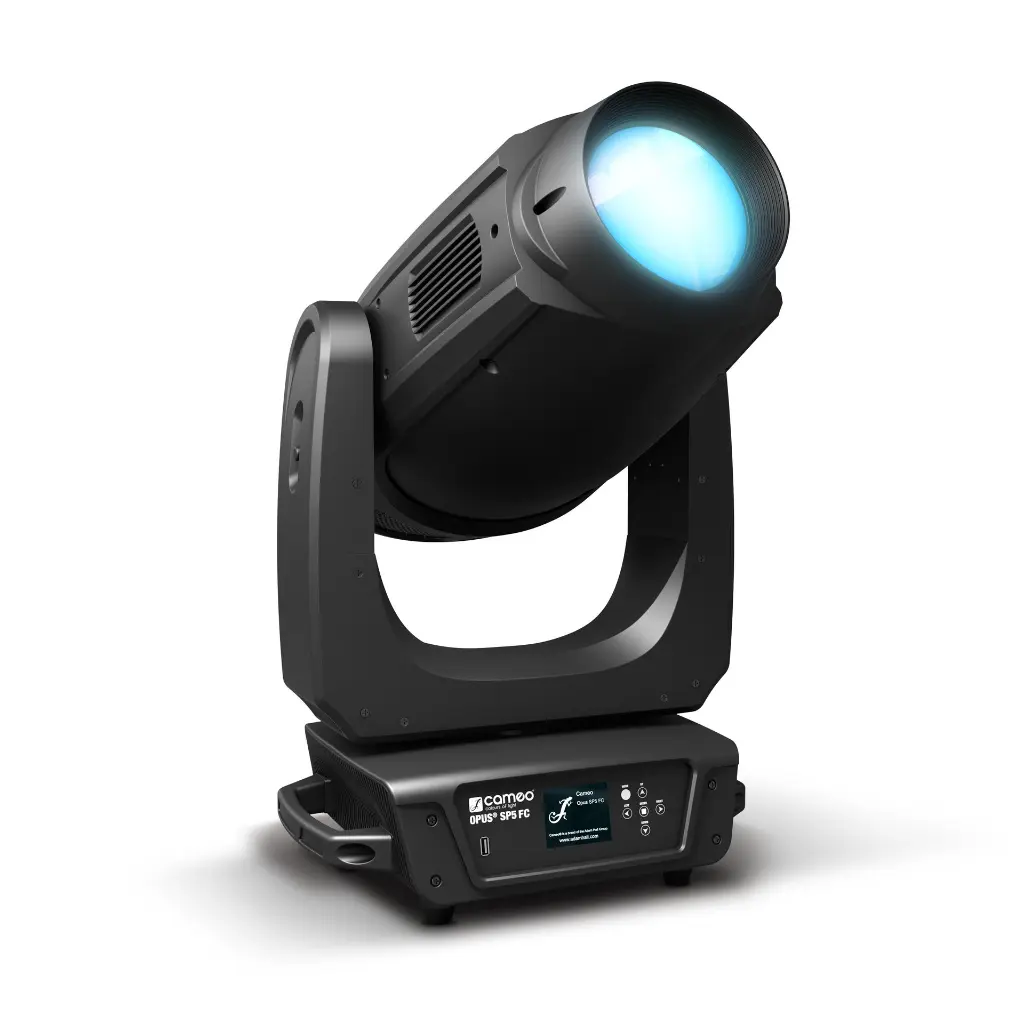

Cameo OPUS SP5 FC Profile

Create perfect displays for your light presentations with a broad colour palette and lightning-fast colour changes with the Cameo OPUS® SP5 FC. The powerful Profile Spot Moving Head reproduces even projection without colour shadows thanks to its high-quality optical system. It features a particularly long zoom range of 6° to 44°, plus a continuously variable iris diaphragm and motorised focusing. A continuously adjustable frost filter supplies a soft, washlight-like spread. With its flicker-free and almost noiseless operation, plus a colour reproduction index of over 90, the spotlight is superbly suited for use in theatre, film and TV production.

The OPUS® SP FC features four diaphragm sliders for creating a range of geometric shapes. These can be individually angled and inserted all the way for complete shading. The complete diaphragm slider system turns +/- 45° for precise positioning. Incredible morphing effects are created with the simultaneous use of both gobo wheels with 6 rotating and 7 static glass gobos. These can be combined with the animation wheel for exceptionally vivid projections. The spotlight offers a rotatable and indexable circular threefold prism and a rotatable and indexable linear sixfold prism for projection reproduction. In addition, four 16-bit dimmer curves are available to choose from.

FEATURES

• Profile Spot Moving Head with 300 W Full Colour RGBAL-LED
• Display the complete colour spectrum with CRI >90 and TLCI 93
• High-quality optic with especially long zoom range of 6° to 44°
• Even projection without colour shadows
• Fourfold diaphragm slider system with +/- 45° rotation
• Angle and position of each diaphragm slider adjustable up to complete closure
• Rotatable animation wheel
• Rotating gobo wheel with 6 indexable and rotatable replaceable glass gobos plus open
• Static gobo wheel with 7 replaceable glass gobos plus open
• Rotatable and indexable circular threefold prism and linear sixfold prism
• Variable frost filter for washlight effects and continuously variable iris diaphragm
• Smooth dimming with 16-bit resolution and 4 selectable curves
• Flicker-free thanks to selectable PWM frequencies up to 25 kHz

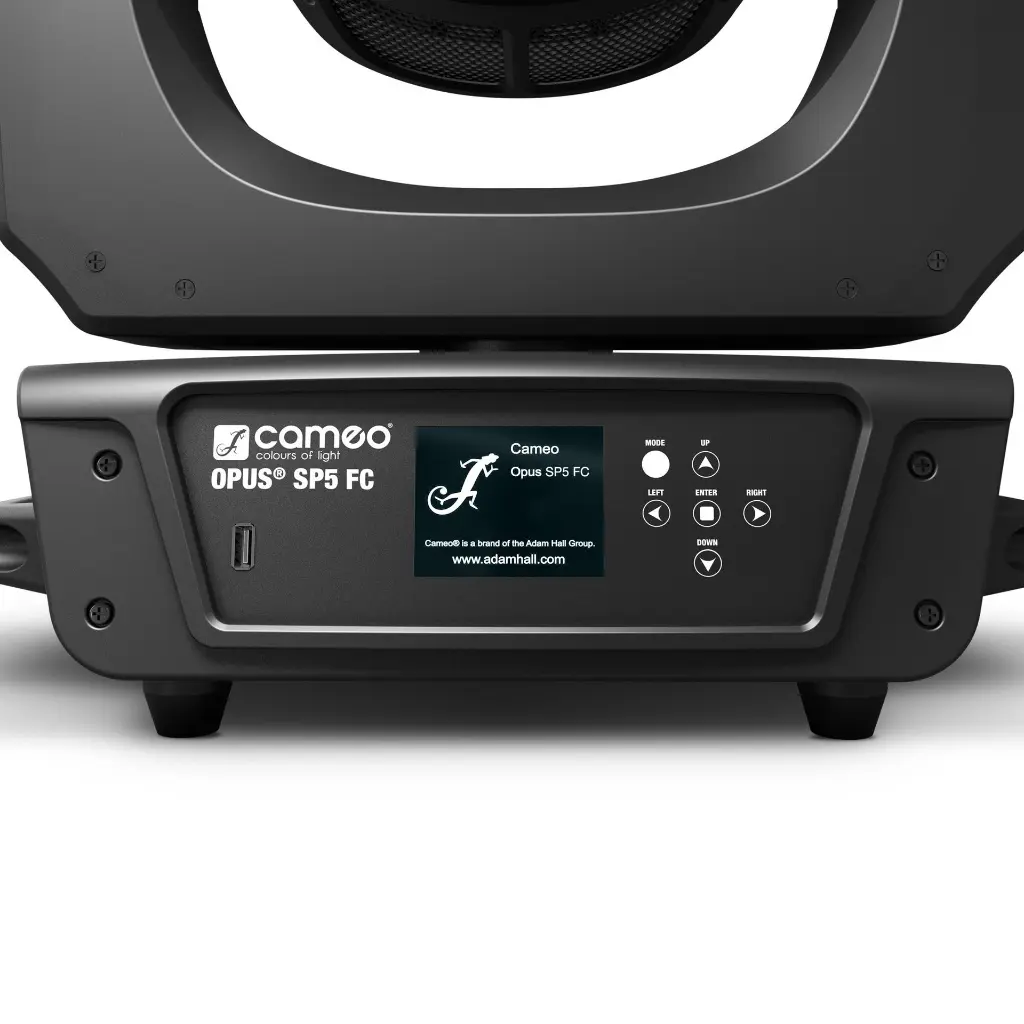

• Battery-powered touchscreen display with 6 touch keys for mains-free configuration
• Flexible control options via built-in W-DMX™ Receiver, DMX, RDM, Art-Net or sACN
• 50 colour presets matched for use with LEE filters

SPECIFICATIONS

• Colour spectrum: RGBAL
• Number of LEDs: 1
• Average LED lifetime: > 20000 hours
• LED type: 300 W
• Refresh rate: adjustable to 25000 Hz
• Dispersion: 6 - 44 °

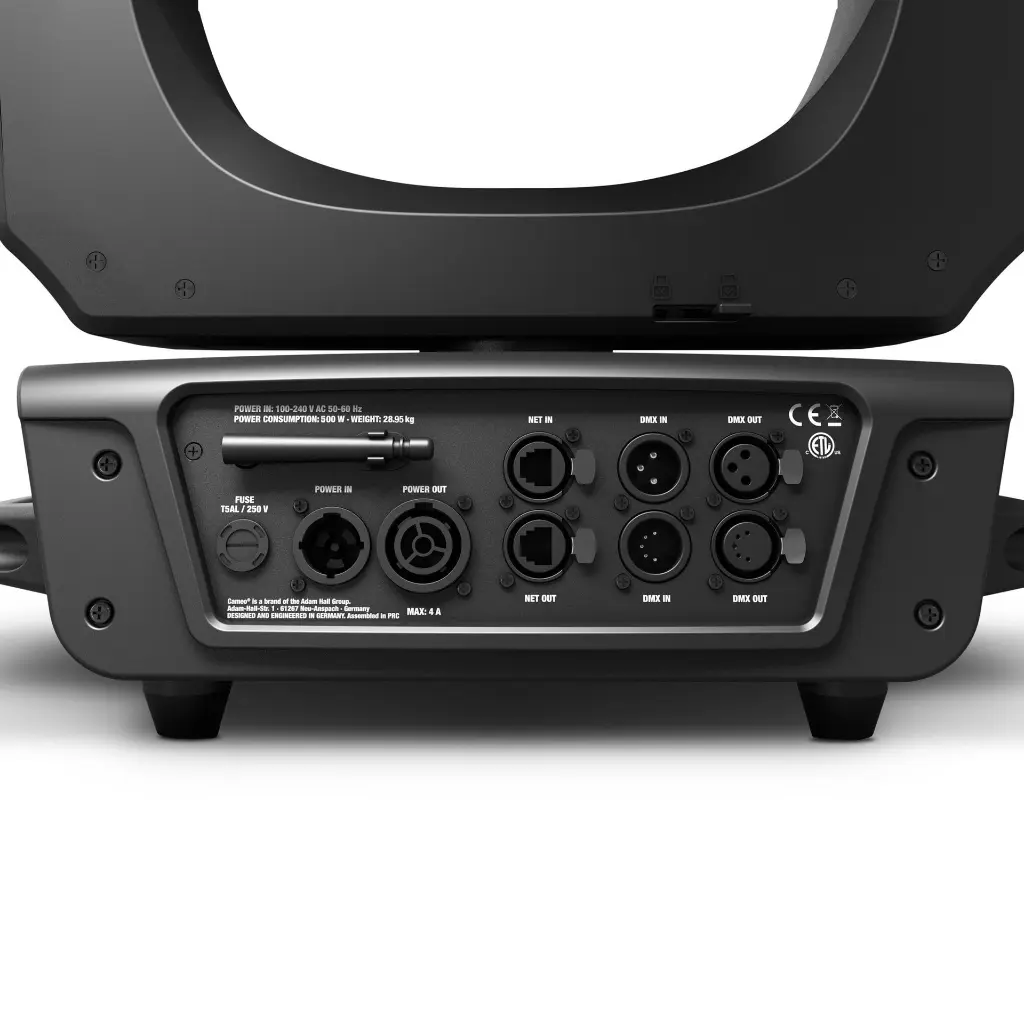

• DMX input: XLR 3-pin male, XLR 5-pin male
• DMX output: XLR 3-pin female, XLR 5-pin female
• DMX mode: 33-channel
• PAN movement: 540
• TILT movement: 270
• High Speed Strobe: > 20 Hz
• Standalone modes: Auto Mode, Settings, Static
• Controls: Enter, Mode, Value Down, Value Up
• Indicators: Graphic Display
• Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz, Neutrik True 1 IN / OUT
• Power consumption: 500 W
• Housing material: ABS plastic, Metal
• Cabinet colour: Black
• Protection class IP: IP20
• Cooling: Heat-pipe cooling system with temperature controlled fans
• Illuminance: 14000 lx @ 5 m
• Luminous flux: 9000 lm
• Maximum Ambient Temperature: -15 - 45 °C
• Dimensions (W x H x D): 380 mm x 710 mm x 250 mm
• Weight: 28.95 kg
