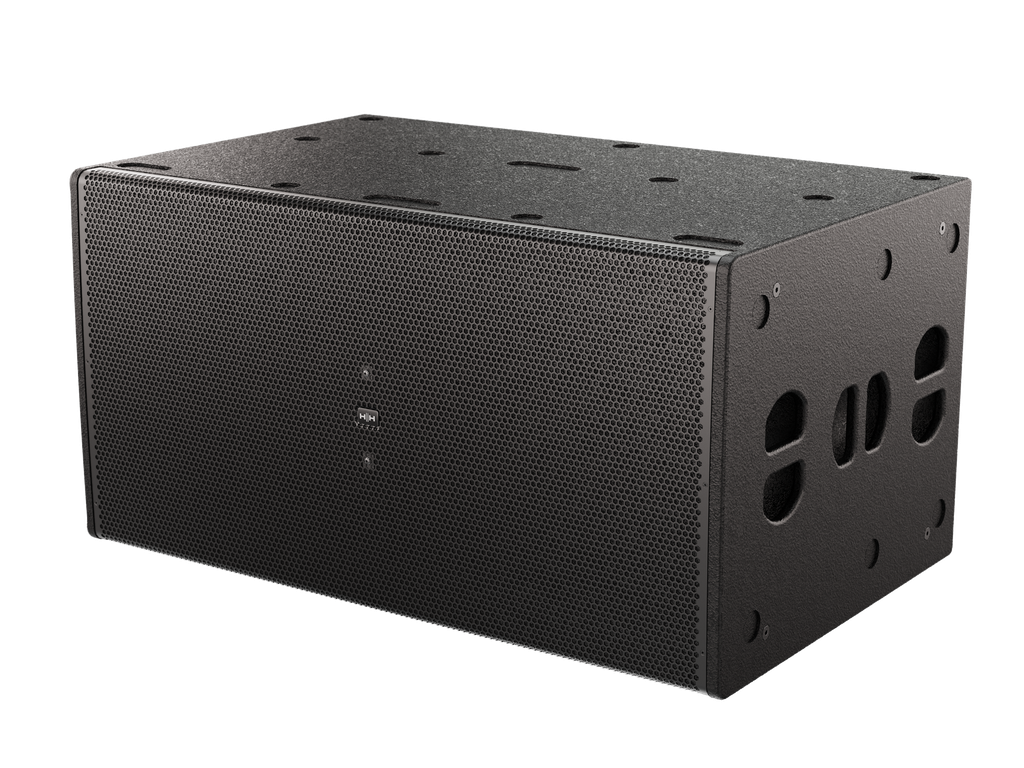

HH Tessen 2 x 18" Powered Line Array Subwoofer

The TNA-2800SA Active subwoofer features two HH designed 18" low frequency woofers with exceptionally high output. Equipped with integrated rigging hardware, the TNA-2800SA can be installed quickly and easily. The TNA-2800SA offers a max SPL of 144 dB and offers a frequency response as low as 32Hz. The TNA-2800SA offers an ideal venue installation or point source solution. Ideal for bars, clubs, venues, schools, sports, gyms, hotels and more.

SPECIFICATIONS

• Accessories: 4 x Heavy Duty 100mm PU Castors included in the box)
• System Type: Dual 18" Active Subwoofer, Direct Radiating, Bass Reflex
• Frequency Response (-10): 32Hz - 100Hz
• Frequency Response (-3): 37Hz - 100Hz

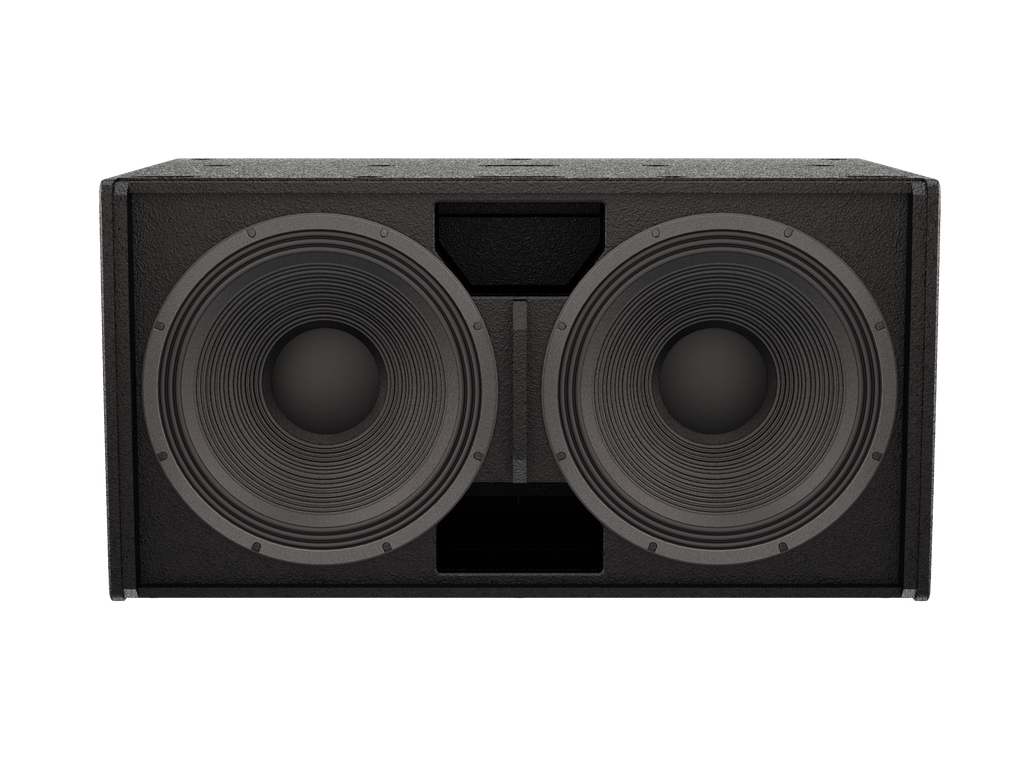

• LF Driver: 2 x 18-inch High sensitivity HH designed driver. 4-inch Voice Coil
• Max SPL: 144 dB
• Crossover Frequency: Active - 70Hz to full range
• Power: 8000W Peak, 4000W Continuous, 2000W RMS
• Input Sensitivity: 0dBu to +10dBu Adjustable
• Input Connector: Balanced Female XLR
• Output Connector: Balanced Male XLR (Switchable Full Range/Xover)
• Controls: Input sensitivity, Crossover frequency, Phase Switch, Variable Delay (0>9.9mS)
• Cabinet: Acoustically optimised 18mm plywood cabinet with extensive internal bracing
• Finish: Painted Black (White finish optional, subject to MOQ)

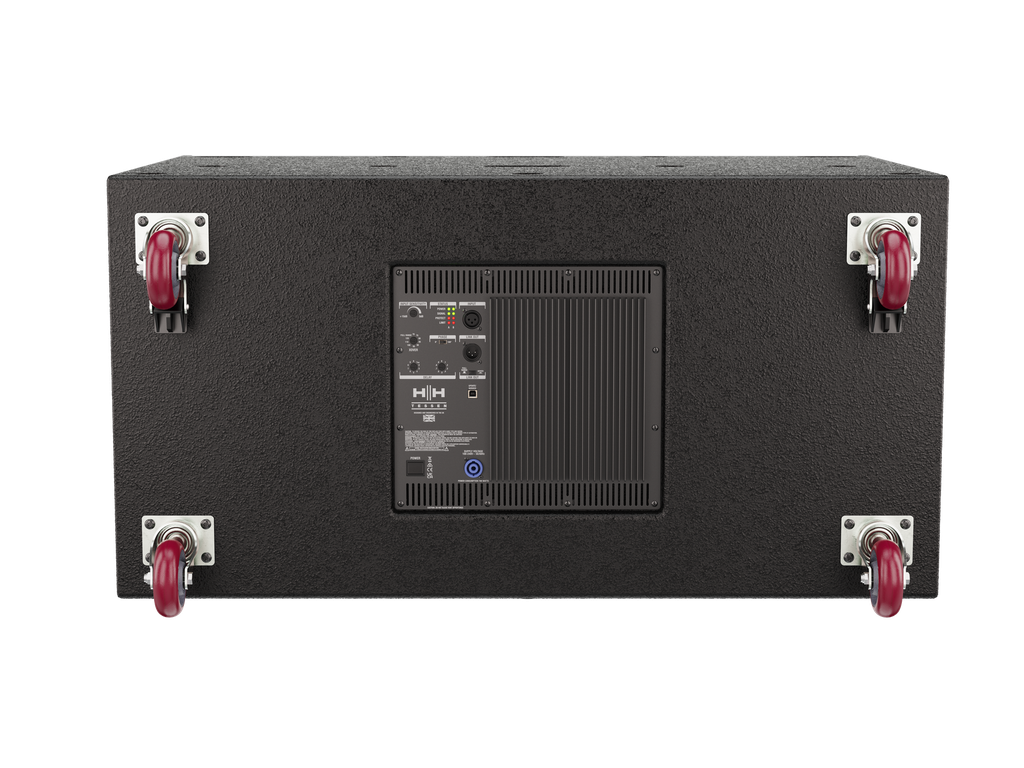

• Mounting Points: 8x M10 Penn Elcom tie down/flying points. 16x M8 inserts for included transport wheels
• Grille: 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
• Unit Dimensions (HWD): 562 x 1080 x 685mm, (22.1" x 42.5" x 27")
• Unit Weight: 77.7Kg, 171 lbs
• Carton Dimensions (HWD): 700 x 1280 x 815mm, (27.6" x 50.4" x 32.1") , (0.73 M3)
