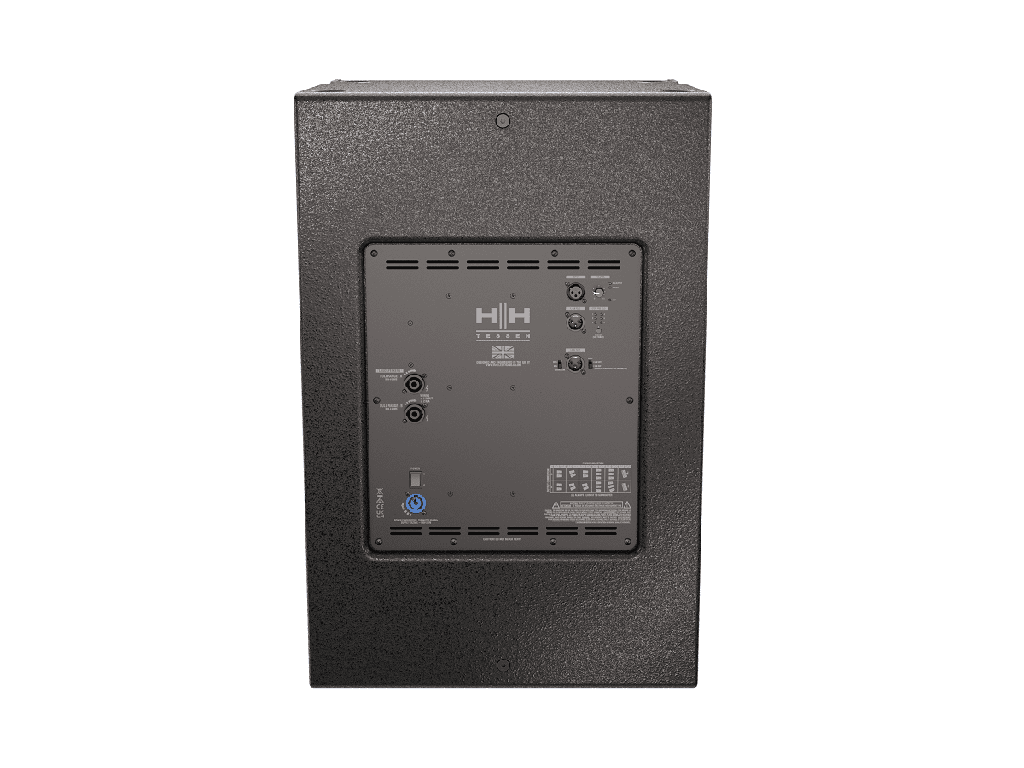

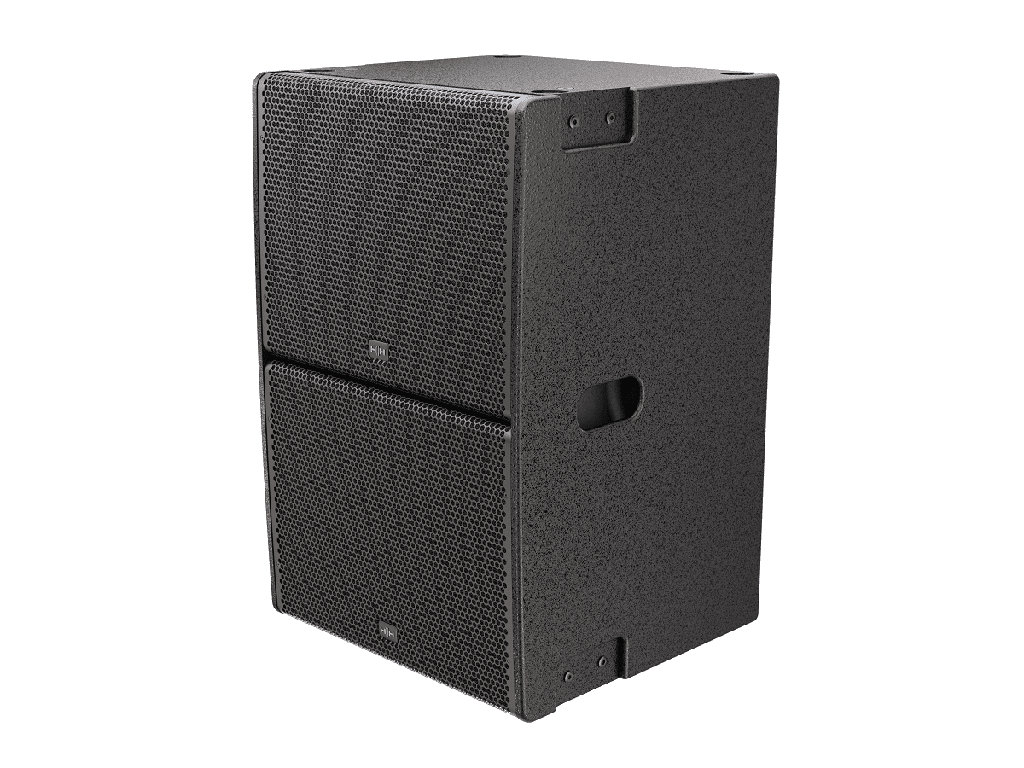

HH Tessen 2 x 12" Powered Line Array Subwoofer

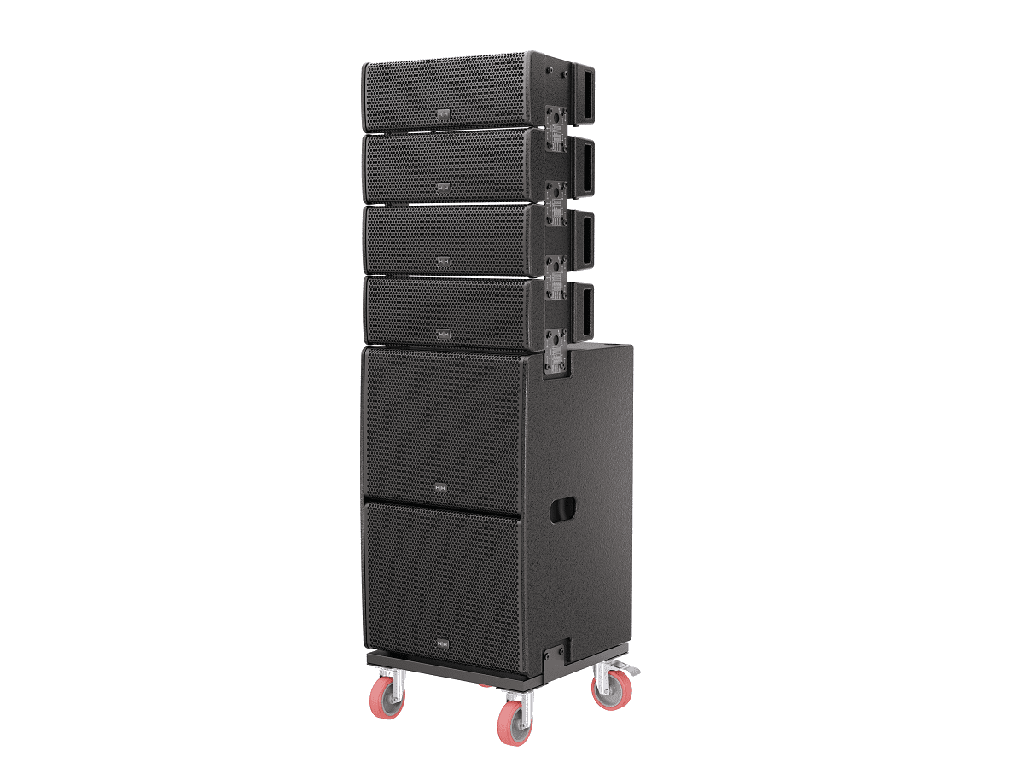

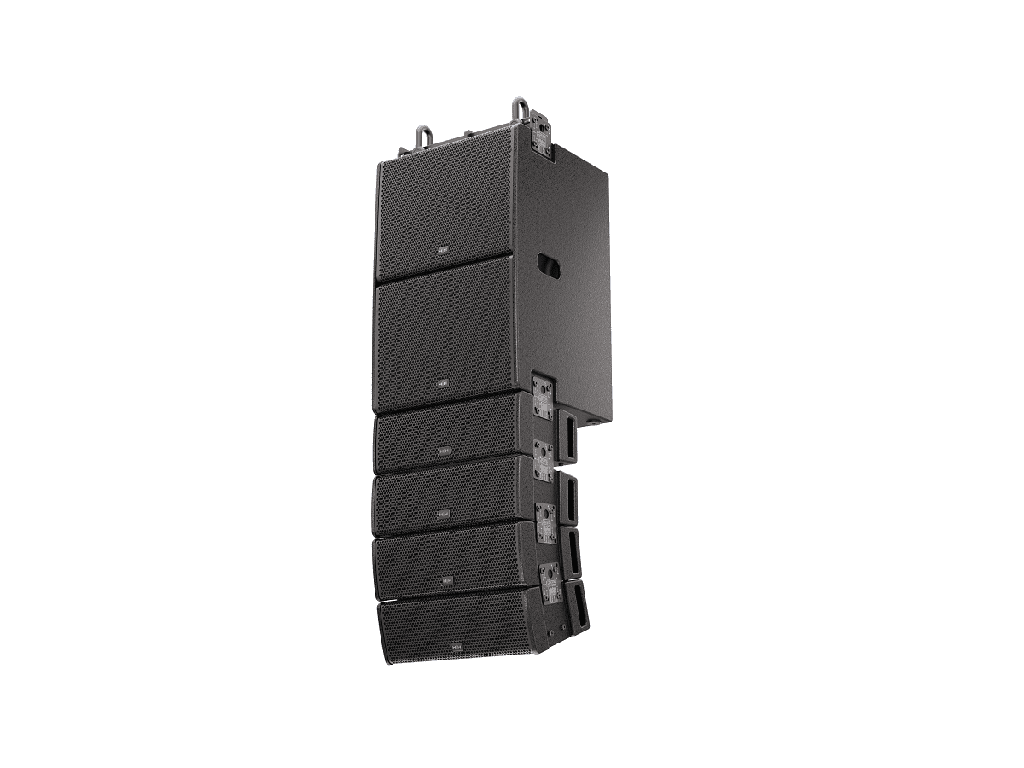

The TNA-2120SA is a multi-channel active subwoofer for powering a complete TNA line array system. The TNA-2120SA features two high power 12-inch low frequency woofers with exceptionally high output. The TNA-2120SA active subwoofer houses three channels of high performance amplification and cutting edge built in DSP presets. As a modular system, the TNA-2120SA is capable of powering up to 6 x TNA-2051 line array satellite cabinets. With Integrated rigging hardware, and optional suspension bracket and dolly board, the TNA-2120SA can be installed quickly and easily. The TNA-2120SA offers a max SPL of 137dB and offers a frequency response as low as 35Hz. When combined upto six TNA-2051's, the TNA-2120SA offers an ideal venue installation or point source solution without the extra expense of rack amplifiers and processors. Ideal for venues, schools, sports, gyms, hotels and more.

SPECIFICATIONS

• System Type: 2 x12-inch Active Subwoofer, Bass Reflex, with Three channel internal amplifier (Two HF Amplifier Channels for external satellites)
• Frequency Response (-10): 52Hz - 200Hz
• Frequency Response (-3): 52Hz - 150Hz * Tuned with internal DSP Presets

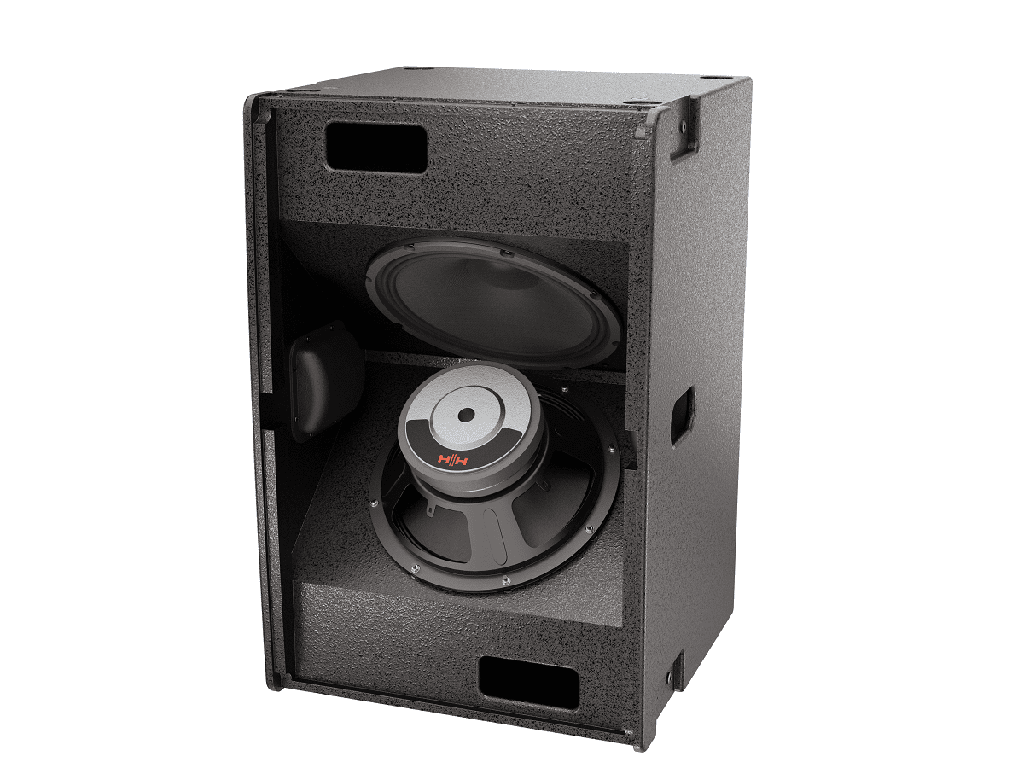

• LF Driver: 2 x 12-inch HH designed high performance driver
• Max SPL: 134dB continuous, 137dB Peak
• Power: System Amplifier Power Rating: 4800W Peak, 2400W Continuous, 1200W RMS<p> Subwoofer Amplifier Power Rating: 2400W Peak, 1200W Continuous, 600W RMS<p> Satellite Amplifier Power Rating: Two Channels of 1200W Peak, 600W Continuous, 300W RMS
• Inputs: Balanced XLR Connector
• Outputs: 1 x Balanced XLR Link Out, 1 x Balanced XLR Sub out with 2 way/3 way mode switch and Ground Lift Switch. 2 x locking speakon connectors for external TNA-2051 cabinets
• Indicators: Power, Mute/Protect, Clip Indicator, Preset Mode
• DSP: 56bit DSP controlling Crossover, EQ, phase and time optimisation for array cabinets. Six built in DSP presets for typical use cases
• Protection: Comprehensive protection and clip free limiting + clip indicator
• Controls: Master Volume, DPS Preset Switch
• Input Impedance (Bal/Unbal): 22K Balanced, 10K unbalanced
• Cabinet: 15mm Plywood
• Grille: 1.5mm Thickness, Hexagonal mesh
• Mounting Points: 8 x M8 fixings for included metal side brackets, and optional TNA-BRK1 flying bracket assembly
• Finish: Painted Black (White finish optional, subject to MOQ)
• Accessories: TNA-DF1 - Dolly frame
• Mounting Bracket: TNA-BRK1
• Unit Dimensions (H/W/D): 730 x 475 x 460mm, 28.7" x 18.7" x 18.1"
• Unit Weight: 36.7Kg, 80.9 lbs
• Carton Dimensions (H/W/D): 910 x 610 x 580mm, 35.8" x 24" x 22.8" , 0.322 M3
